BGAN EXPLORER 727 Veicular Satellite System - 403722A-00700





Servicios:
Data

Precio: 15.330,68 EUR +IVA

The Thrane Explorer 727 Vehicular BGAN provides voice and broadband communications for your vehicle. Thrane EXPLORER 727 gives you access to Internet,E-mail,Fax, voice calls, video conferencing and streaming, and corporate servers. Simultaneous voice and 432 kbps data on the go. Simultaneous voice and 432 kbps data on the go. Voice and broadband communications for your vehicle. Whether you are off-roading through the desert, driving down cobblestone streets, or cruising the highway, Explorer 727 ensures that you are connected to the rest of the world via a tracking antenna mounted on the roof of your car. Thrane EXPLORER 727 gives you access to Internet,E-mail,Fax, voice calls, video conferencing and streaming, and corporate servers. Setting up your EXPLORER 527 is quick and easy. The system automatically finds the BGAN network after power-on. Just plug in a phone fax or laptop - and you are online. The basic system consists of two units-a tranceiver and an antenna. Product Features -Simultaneous voice and data communications over BGAN -High-speed data transfer up to 432 kbps -Seamless global coverage -Support for streaming IP at 32, 64, 128 and 256 kbps -Standard LAN, USB, Bluetooth, and phone/fax interfaces -Secure voice/data connections -Easy system setup and operation -Lightweight, splash and dust proof design -Robust, reliable and durable design -Plug and play capability

Included in the Package:
1. Fully Integrated Auto-Tracking Antenna - Color: Desert Sand

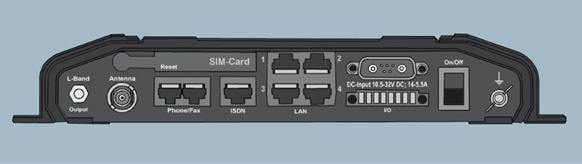

2. EXPLORER Land Vehicular Transceiver
Standard Ethernet Cable (5m/16.4ft)
12/24 VDC input cable (6m/19.7ft)
Antenna Cables,COAX w/ TNC Connector (2,7m/8.8ft, 8m/26ft)
Getting started kit
Quick Start Guide, CD with manuals
3. Thrane IP handset wired with Cradle and Coiled Cable
4. Antenna mounting kit (Fixed / Rail)
Precio: 15.330,68 EUR +IVA
EUR 18396.82 (VAT included)
(EUR 15330.68)

*USTED DEBE HACER UNA OFERTA cuando usted necesita comprar accesorios especiales, como por ejemplo una antena y cable para que podamos darle el cable correcto para conectar la antena al dispositivo con todos los adaptadores que usted pueda necesitar.


Características:
Phonebook
Message indicator
Restricted dialing
Traffic logging
Admin control (password protected)
Webserver
Router or direct mode
Network Management
DHCP
SIP server (end 2009)
Up to 11 x PDP context
Point-to-Point Protocol over Ethernet (PPPoE)
Power over Ethernet (PoE)
Especificaciones:
Dimensions
Terminal
H/W/D: 42.5x247x270mm
H/W/D: 1.67x9.72x10.63inches
Antenna
H/W: 160/Ø476.5mm
H/W: 6.3/Ø18.76inches
Weight
Transceiver: 2.4 kg/5.5 lbs
Antenna: 6 kg/13.2 lbs
Data capabilities
Standard IP:
Receive: 432kbps
Transmit: 432kbps
Streaming IP: 32, 64, 128, 256kbps (256kbps @ elevation > 45°)
ISDN: UDI 64kbps/RDI 56kbps (@ elevation > 15°)
Text capabilities
SMS 160 char.
Voice capabilities
Standard voice: 4 kbps
Premium voice: 3.1 kHz audio, 64 kbps (@ elevation > 15°)
Inmarsat frequencies
Receive: 1525.0 – 1559.0 MHz
Transceive: 626.5 – 1660.5 MHz
Recommended antenna cable
Cable loss max:
1525.0 – 1660.5 MHz 20 dB
36 – 54 MHz 4 dB
Maximum DC loop resistance 0.6 ohm
Max. cable length pr. type
RG-223_U-01 14 m/46 ft
RG-214_U-01 50 m/164 ft

Environmental Conditions
Operating temperature -25 to +55°C/-13 to 131°F
Water and dust Transceiver: IP-31/Antenna: IP-56
Relative humidity 95% non-condensing (at +40°C/104°F)
Storage temperature -40 to +85°C/-40 to 185°F
Survival temperature -40 to +80°C/-40 to 176°F
Manufactor: COBHAM SATCOM Manufactor Website:

www.thrane.com
Plan de tarifas prepago:

BGAN PREPAID WORLD Detalles

BGAN PREPAID GEOGRAPHIC Detalles

Plan de tarifas postpago:

BGAN POSTPAID GEOGRAPHIC Detalles

BGAN POSTPAID WORLD Detalles

BGAN LINK DSL 10 GB Detalles

BGAN LINK DSL 15 GB Detalles

BGAN LINK DSL 5 GB Detalles
