IRIDIUM SBD MT3300 Oceanografic Drifter Buoy

IR-MT3300-DRIF





Usage:
Maritimo
Tjänster:
Data
SMS
E-mail

Pris: 1.146,08 EUR +MOMS

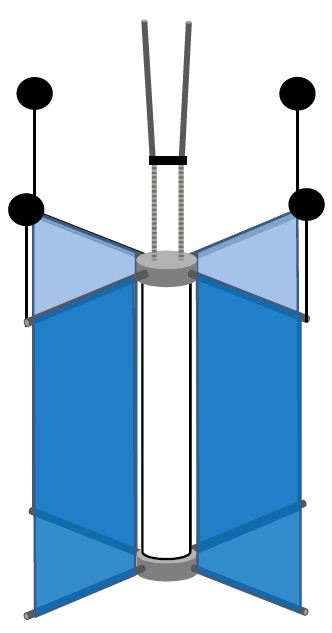

The buoy uses a semi-rigid structure with four square, drag-inducing “vanes” extending from a central cylindrical hull. The center of drag is positioned at 1 meter of water depth. Positive buoyancy is obtained via 4 small floats attached to the vane arms. This design minimizes the influence of wind and the forces resulting from wave action. The DBi Iridium-CODE is the only buoy of its type that offers a single mast antenna system – further reducing wind-induced drag.

For best results and the most efficient operation, the unit should be powered up on deck to verify operation and initialize the GPS prior to deployment. If this is not possible, the buoy can simply be lowered into the water where it will self-deploy within less than 30 minutes. The packaging materials are bio-degradable so as not to damage the environment.

Optional: Extended Battey 400 days battery duration with 15 minutes reporting (standard battery will last 200 days with 15 minutes reporting)

Each SBD message will use 14 byte for Position, Water Temperature and Battery level

I paketet ingår:
IRIDIUM SBD MT3300 Oceanografic Drifter Buoy
Pris: 1.146,08 EUR +MOMS
EUR 1375.30 (VAT included)
(USD 1300.00)

* DU BÖR FRÅGA EFTER EN OFFERT när du behöver köpa särskilda tillbehör, till exempel en antenn och en kabel så att vi kan ge dig den rätta kabeln för att ansluta antennen till enheten med alla adaptrar som du kan behöva.


Funktioner:

  • Iridium satellite communications system
  • Trimble GPS
  • digital SST sensor
Specifikationer:
Environmental Characteristics
- Storage Life.2 years
- Operating Temp Range..……………. -20 deg C to +40deg C
- Survival Temp Range……………....… -20 deg C - +50deg C
- Estimated Operating Life………..……….......6 mo. (varies with configuration)
Electronic Systems
- Communications……..………DBi Controller/ Iridium 9602 SBD
- GPS………………………Trimble Condor C2626 or equivalent
- Temperature Sensor (optional)…………………………Digital
- Power…………….Diode-protected D-cell battery packs (30Ah)
Data System
- Dataset………….……GPS location, SST, Date, Time, Voltage
- Messaging Rate………………………..per User Requirement
- Data Format…………………………...per User Requirement
- Observation Cycle……….…………..…per User Requirement
Physical Characteristics
- Drag Element Cross-section .…………..…..1 meter x 1 meter
- Center-of-drag Depth…………………….…..………1 meter
- Central Tube Diameter……………...………………...90 mm
- Upper and Lower Arm Mount Diameter…….……….115 mm
- Float Diameter ………………...……….…..……..…..90 mm
- Float Tether Length…….………………….………...255 mm
